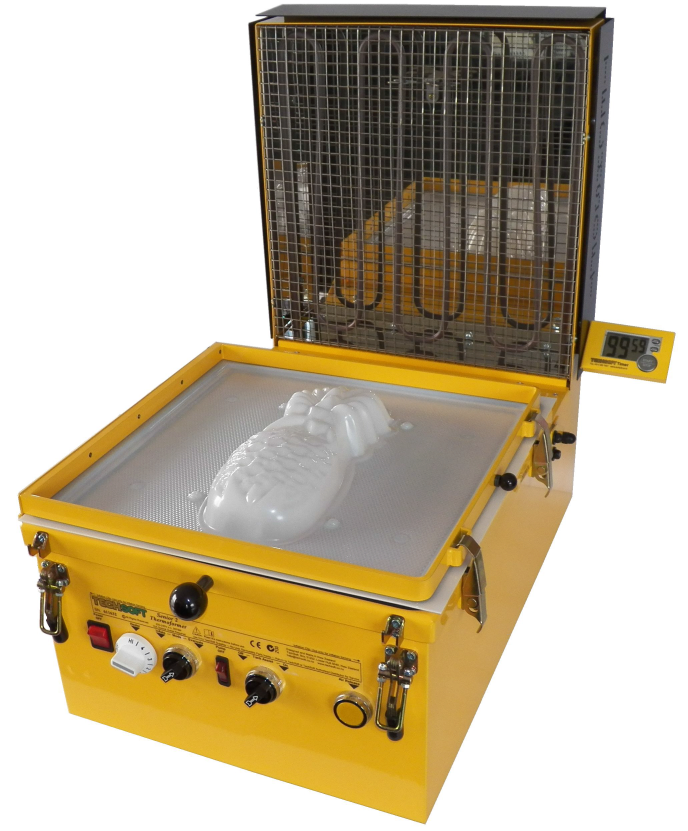

Senior™ Thermoformer (vac-former)
Thermoforming works by heat softening a sheet of plastics material, stretching it over a forming tool (model), then removing the air (vacuum) from underneath the heated sheet. The heat softened plastics sheet will then conform to the forming tool and cool to its original stiffness.
Features
- Fast — make a 1-off forming or 10's or 100's
- Electric Pump with Tank Assist
- Evacuation-Forming And Inflation-Forming on the same machine
- Easy-to-use — Year 7 and upwards
- Ideal for Education and Prop-making
For Education
- Watch the entire process — your work is not hidden under another part of the machine
- Control what is happening — every step of the way
- Succeed first time
- Low cost of materials
For Light Manufacturing and Prop Making
- Form over almost anything, from plant material to plaster to wood to metals
- Plugs into 230V 15A socket
- No external compressor or vacuum pump required
The TechSoft Senior Thermoformer also has a Vacuum Tank built in. In this video, Vacuum Tank Assist is used to form TechSoft PVAC clear sheet. |
The TechSoft Senior Thermoformer can also pressurise the air under the heat softened plastics sheet. In this video, Inflation Forming is used to form a dome in TechSoft PVAC clear sheet. |
Specifications
- Electrical Supply: 230V a.c., 2675W
- Safety: Compliant and marked CE and C-tick
- Mass: 30kg (65lb)
- Dimensions: Width: 450mm (17.75"), Depth: 650mm (25.6"), Height 650mm (25.6")
- Sheet size: 400mm (15.7") x 400mm (15.7")
- Robust powder-coated steel and stainless steel construction
- Comes complete with manual, operation posters, sample pack of material — ready to go in minutes
- Designed and manufactured in New Zealand
